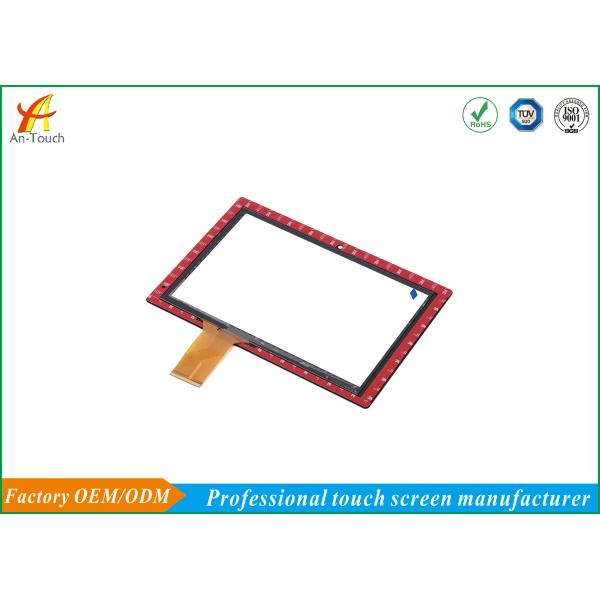

High Resolution Industrial Touch Panel With Glass To Glass Structure

High Resolution Industrial Touch Panel With Glass To Glass Structure

Industrial Touch Panel Features:

1. 1.1mm to 6mm temperted glass.
2. Support cover/size customized.
3. 4096×4096 Resolution with linearity error ≤2mm.
4. Size available from 7inch to 65inch.
5. Multi-touch 1 to 10 touch points.
6. Tempered scratch proof cover glass with high impact resistance.

Industrial Touch Panel Development process:

1. Receive customer's technical files, including PCAP drawing, LCD specification.
2. Recommend standard products or customize products based on customer's requirements.
3. Offer engineering drawing for confirmation and fill in project kick-off form.
4. Make samples according to the confirmed drawing.
5. Debug the samples based on the information on kick-off form, keep the FW.
6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well

Industrial Touch Panel Application:

1. POS Machine
2. Industrial Control industry
3. Touch Monitor
4. Information Kiosks
5. Gaming, Lottery ect
6. Multimedia marketing
7. Banking / Fanancial System
8. Touch Table

Industrial Touch Panel Product Parameters

Operation Principle:

Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position

Delivery Time:

1.Samples in stock: 1~3 working days.

2.Customized project: 10~15days for samples.

3.Mass production: 10~18days.
